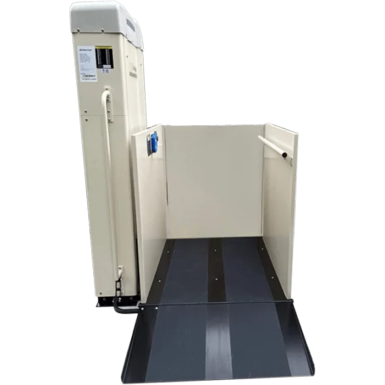

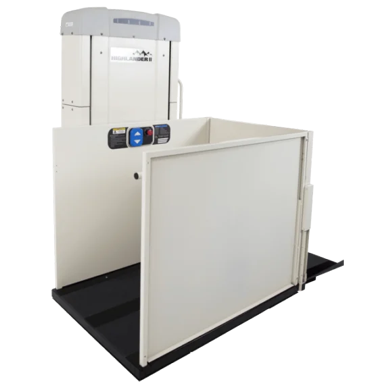

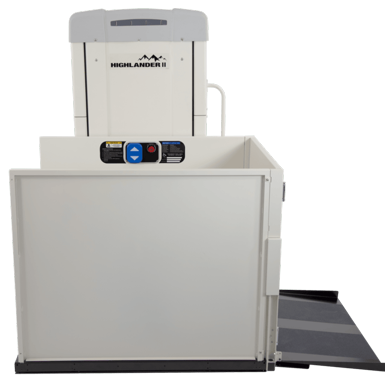

Easy operation and upkeep at increased heights
Even with increased height, Harmar’s CPL is engineered for fast
installation, easy operation, and is virtually maintenance-free indoors
and out. Designed with precision and care to be an incredibly
high-quality, code compliant access solution, Harmar’s Highlander series
is sure to meet your every need. Heights available from 4’ to 14’.
Features Top-mounted motor and electrical box makes servicing
easy and eliminates potential water issues Ability to
unbolt the base to get the lift through small openings
ETL Listed Available in AC and DC models
Solid platform with non-skid surface for added safety Solid
42” high guard panels Weather-resistant design for
indoor and outdoor use Constant pressure, paddle switch
controls with emergency stop button
Safety Sensors on underside of platform stop at obstructions
Stationary access ramp
Weight Capacity: 750 lb (340 kg) Platform Size: 36” x 54” x
42” Speed: 10 FPM
Harmar RPL
Residential Platform Lift
Residential VPL 600 lbs Capacity
Harmar’s Residential Vertical Platform Lift (RPL) is a safe, smooth and
economical solution to the barriers, porches, staircases, decks and other
elevation changes can create in and around a home.
Safe,
economical solution to barriers, porches, staircases, and decks
Designed from the ground up to be as cost-efficient as possible, the RPL is
priced to be competitive with shorter units but built to accommodate most
residential applications with ease. Available in heights from 4 to 6
feet and for use indoors and out.
Features Automatic, folding access ramp Available in
AC and DC models Solid platform with non-skid surface for
added safety Solid 36” high guard panels
Weather-resistant design for indoor and outdoor use
Constant pressure, paddle switch controls with emergency stop button
Sensitive safety pan on bottom of platform stops the lift if it meets an
obstruction
One Harmar Vertical Platform Lift is available 4 to 6 feet; and another Harmar
Vertical Platform Lift is available 4 feet to 14 feet.
RPL Residential Vertical Platform Lift. Harmar’s all new Residential Vertical
Platform Lift is a safe, smooth and economical solution to the barriers porches
and other elevation changes can create in and around a home. Designed from the
ground up to be as cost-efficient as possible. Available in heights from 4 to 6
feet
specifications and
brochure, the Highlander
Wheelchair Elevators are priced to be competitive with shorter units but
built to accommodate most residential applications with ease. As
with all Harmar lifts, the RPL is simple to install, easy to operate and
virtually maintenance-free for use indoors and out.
Harmar Wheel Chair Porch Platform Elevator Lifts are available from 4 feet
to 14 feet.
The Harmar's Highlander series Wheel Chair Lifts are sure to meet your every
need: simpler to install, easy to operate and virtually
maintenance free for use indoors and out.
More Information on Harmar Products
With
the Sierra you can your wheelchair or scooter can ascend your staircase so
you can enjoy your upstairs; and get up easier. For even greater
accessibility the Sierra can be installed and unsed outdoors.
The
Pinnacle stair lift is only 10 inches wide when folded and 11 inches from
wall when installed. The Pinnacle is the slimmest and most lightweight
stair lift on the market.

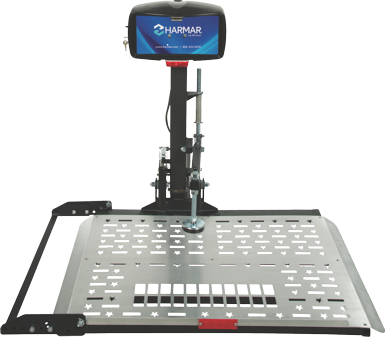

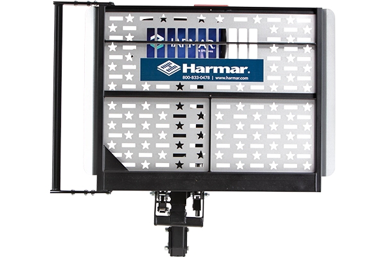

Harmar Outside Car Van SUV RV Truck and Truck Mobility Scooter and
Wheelchair Exterior Outside Hitch Lifts are the best made in the USA.
The best selection and lowest prices on Harmar Inside Lifts for Cars, Van's
Suv's RV's Trucks and Trunks for Mobility Wheelchairs and Scooters made in
the USA

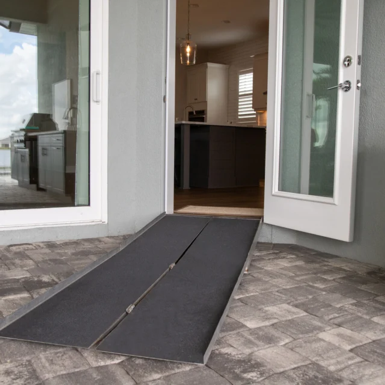

Great Selection and Low Prices on aluminum folding portable ramps for
Wheelchairs and Scooters to be used for porch or car or truck or van.
Great Selection of Harmar Stair Lifts
Harmar RPL Residential Platform Lift
Harmar
RPL Residential Platform Lift
Residential VPL 600 lbs Capacity
Homes (Residential)
Harmar’s Residential Vertical Platform Lift (RPL) is a safe, smooth and
economical solution to the barriers, porches, staircases, decks and other
elevation changes can create in and around a home.
Safe, economical solution to barriers, porches, staircases, and decks
Designed from the ground up to be as cost-efficient as possible, the RPL is
priced to be competitive with shorter units but built to accommodate most
residential applications with ease. Available in heights from 4 to 6 feet and
for use indoors and out.
Features Automatic, folding access ramp Available in AC and DC models Solid
platform with non-skid surface for added safety Solid 36” high guard panels
Weather-resistant design for indoor and outdoor use
Constant pressure, paddle switch controls with emergency stop button
Sensitive safety pan on bottom of platform stops the lift if it meets an
obstruction
$6395.00
Residential and Commerical . . . NEED A WHEELCHAIR LIFT INSTALLER?
. . . CALL 800-824-3145
Standard 4 - 5 Feet . . . Up to 14 Feet
Sales, Service, Delivery & Installation

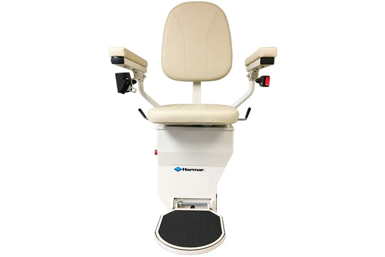

SELECT A HARMAR HELIX HAWLE PRECISION STAIR LIFT
HARMAR
SL300
SL300

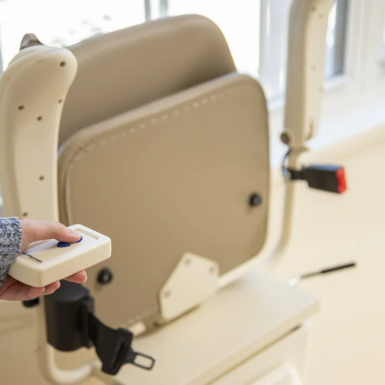

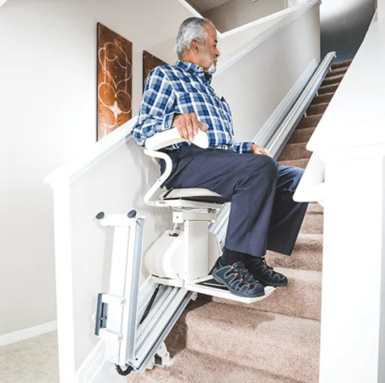

The Pinnacle SL300 Stair Lift is competitively priced with plenty of value.
Very compact, it runs smoothly, and requires little to no maintenance.
The Pinnacle Stair Lift has an established reputation as an industry leader
for its innovative design, solid performance and reliability. It’s patented
drive system serves as the cornerstone that makes this stair lift different
from all others on the market.
The SL300 gives you peace of mind knowing it’s efficient motor offers
extended performance during power loss, up to 40 trips up and down.
Owners of this stair lift will enjoy a smooth stable ride due to its
patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the
most compact of stair lifts, folding closer to the wall so others can
pass easily.

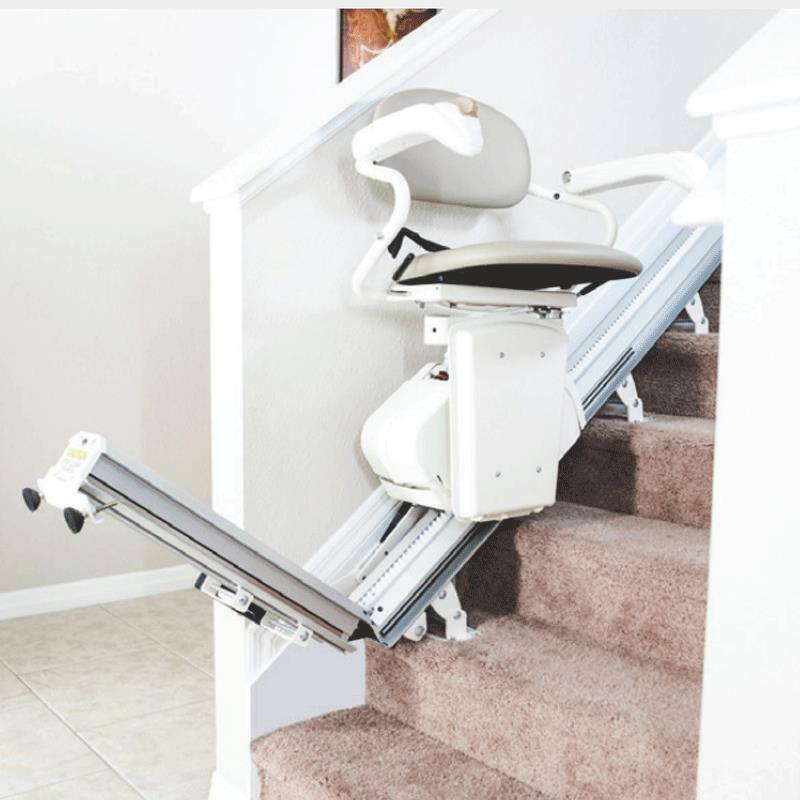

Clear Walkways
Harmar’s exclusive automatic and mechanical folding rail removes
obstructions and trip hazards at the lower landing area. Its operation
is automatic, the user does not need to stop or have someone else
assist. And since it’s mechanical, there are no additional switches or
controls.
Optional
Hinged Rail

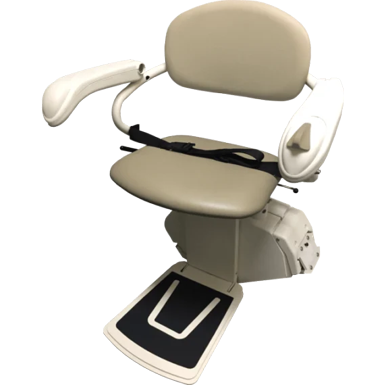

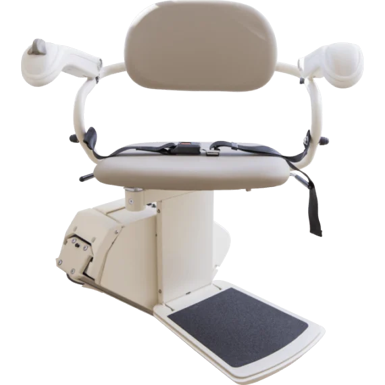

Harmar SL300 Standard Features
-
The over-sized worm gear offers greater stability
-
Lubrication free, keeps you, your stairs and even your pets free
from a mess
-
Symmetrical design provides industry's most compact folded width
-
Swivel seat at upper landing, for easy and safe, entry and exit
away from staircase
-
Operable in a power outage – up to 40 trips!
-
Safety sensors in the footrest and optional in the chassis will
stop the lift if it meets an obstruction
Harmar SL300 Specifications
-
Weight Capacity
300 lb (136 kg)
-
Seat Size
Seat: 19" W x 16" D
Back: 16.5 W x 9.5" H
-
Speed
20 FPM
-
Folded Width
11"
-
Track Length
15'6" Standard
Up to 32'
-
Power
24V DC
-
Incline Limits
32° - 45°
-
Outdoor
No
-
Drive System
Nylon Polymer Helical Worm Gear
-
Safety Features
• Centrifugal Overspeed Brake
• Bi-directional Footrest with Obstruction Sensor
• Swivel Seat Cutt-off Switch
• Final Limits
• Chassis Obstruction Sensors
-
Warranty
2-Year Parts Warranty
10-Year on Gear Rack
1-Year on Battery
-
Optional
• Folding Rail
• Retractable Seat Belt
• Key Lock
• Extra Rail
